Unicel 30" Replacement DE Filter Grid for 60 sq. ft. Systems | FG-1005
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- FG-1005
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

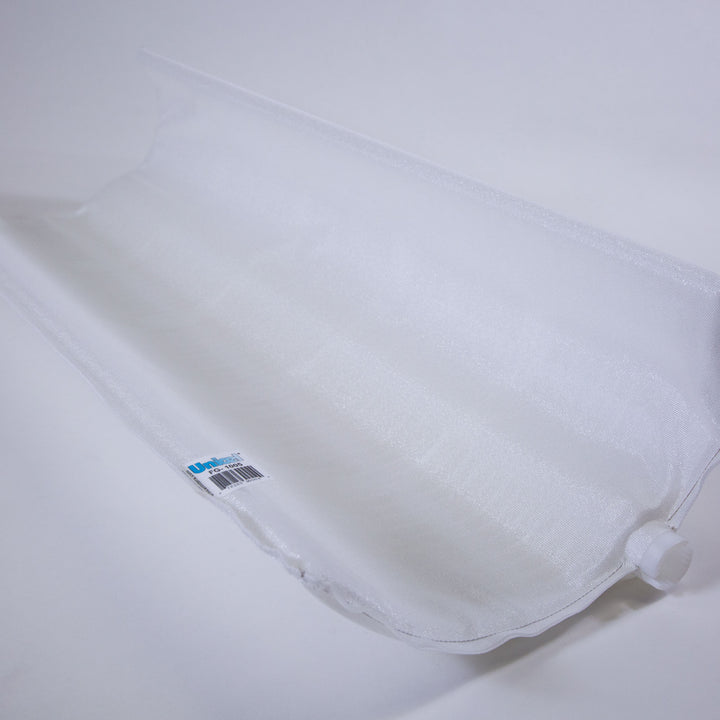

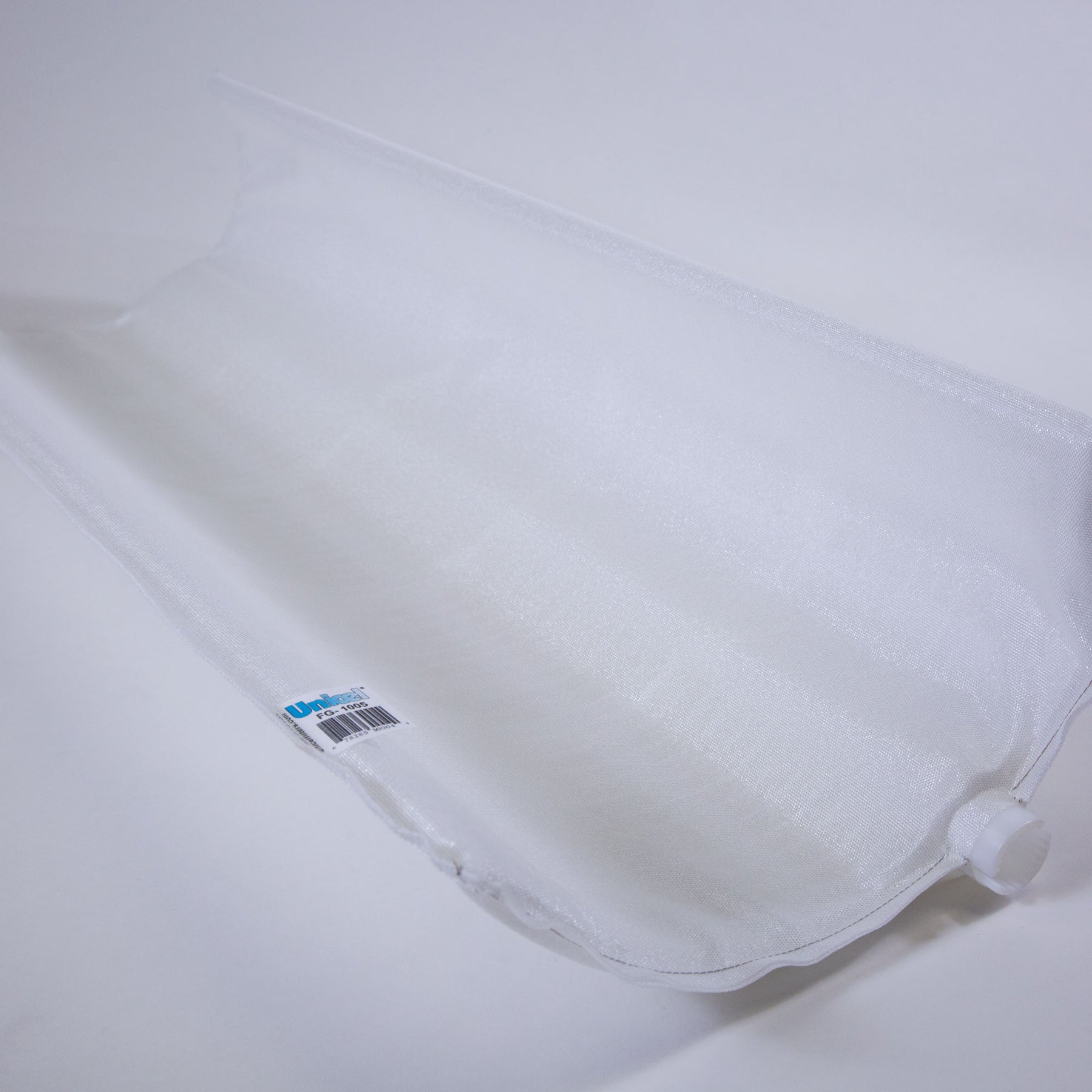

Precision-engineered as a drop-in replacement for 60 sq. ft. DE filter systems, the Unicel FG-1005 is a single full-size grid built to exact OEM dimensional tolerances. Its reinforced construction delivers long-lasting pressure resistance, reliable debris capture, and a snug manifold fit across a wide range of Hayward, Pentair, Sta-Rite, Jandy, Jacuzzi, Waterway, and Astral filter models.
⚠️ IMPORTANT: CHECK BEFORE YOU BUY
This product is a single (1) replacement DE filter grid — it is NOT a complete set. A full filter service requires multiple grids. Please verify the quantity and type (full or partial) needed for your specific filter model before ordering.
⚠️ IMPORTANT: Partial Grid Also Required for Some Systems
Hayward (Micro-Clear, Pro-Grid) and Pentair (FNS Plus, American Products) 60 sq. ft. systems require 7 full grids (FG-1005) + 1 partial grid for a complete re-grid. The companion partial grid is Unicel PG-1905 — order both for a full service.
Sta-Rite, Jandy, and Jacuzzi Earthworks 60 sq. ft. systems use 8 identical full grids (FG-1005) — no partial grid required.
Specifications
| Filter System Area | 60 sq. ft. (total system) |
| Grid Length | 30" (measured end to end, collar not included) |
| Grid Width | 11" |
| Collar Configuration | Open slot, 2 notches |
| Material | High-grade DE filter fabric with reinforced seaming |

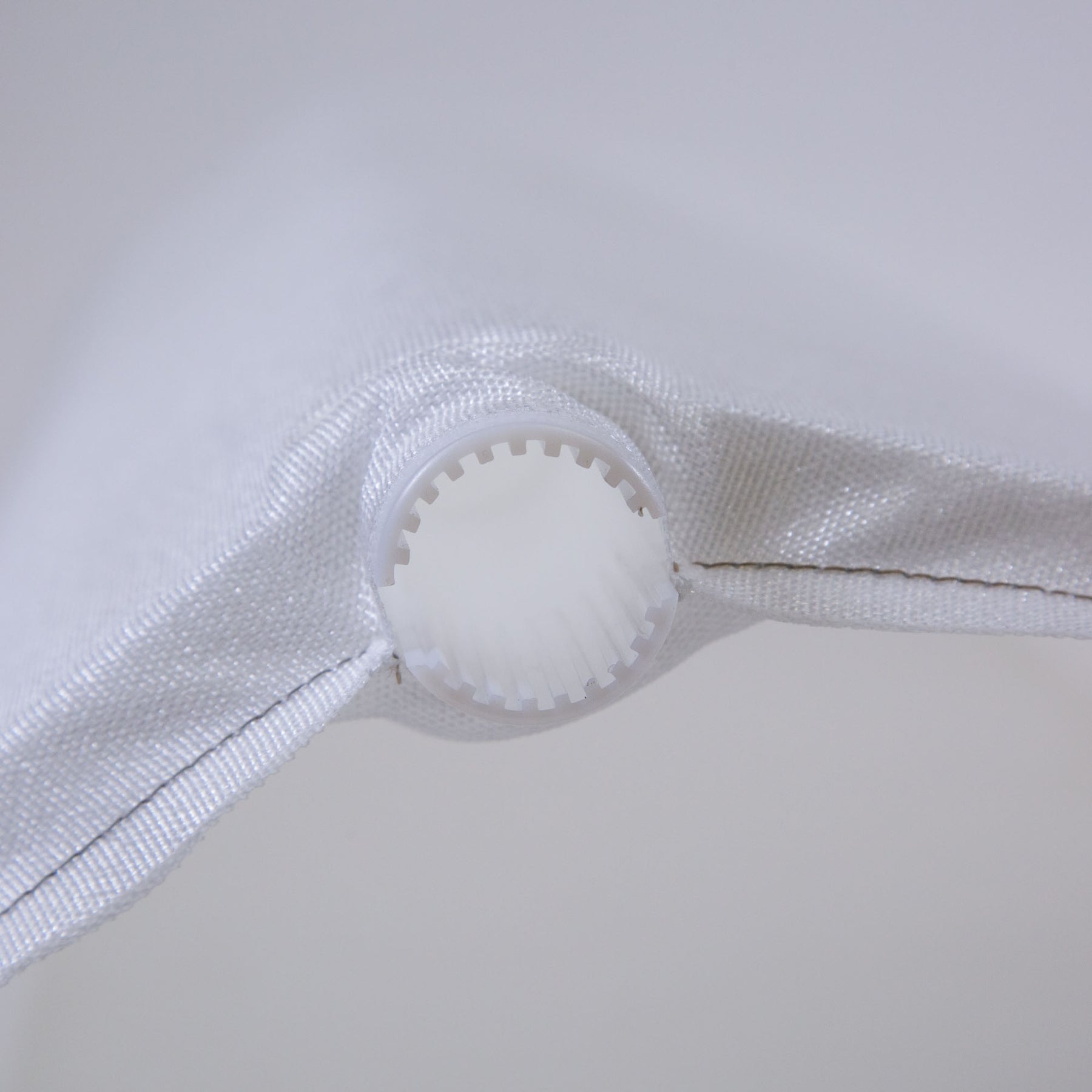

Note from Unicel: Collar has open slot (2 notches). Length is measured from one end of the grid to the other (collar not included).
Fits Into:
| OEM Brand | Filter Model | OEM Part Number | Grid Configuration |
| Hayward | Micro-Clear | DEX6000DA | 7 full + 1 partial (PG-1905) |
| Hayward | Pro-Grid | DEX6000DA | 7 full + 1 partial (PG-1905) |
| Pentair – American Products | 5000 Series | 59003000 | 7 full + 1 partial (PG-1905) |
| Pentair – American Products | Titan CM | 59003000 | 7 full + 1 partial (PG-1905) |
| Pentair – American Products | Titan RPM | 59003000 | 7 full + 1 partial (PG-1905) |
| Pentair – American Products | Titan Stainless Steel | 59003000 | 7 full + 1 partial (PG-1905) |
| Pentair – Pac Fab | FNS Plus | 59003000 | 7 full + 1 partial (PG-1905) |
| Pentair – Pac Fab | FNS 60 (Nautilus FNS Polymeric) | 19-2189 | 7 full + 1 partial (PG-1905) |
| Pentair – Pac Fab | NS60 (Nautilus) | 19-2189 | 7 full + 1 partial (PG-1905) |
| Pentair – Pac Fab | NSP-60 (Nautilus Plus) | 19-2189 | 7 full + 1 partial (PG-1905) |
| Sta-Rite | — | WC108-5A | 8 full grids — no partial required |
| Jandy (Waterpik) | DEL/DEV 60 | R0357800 | 8 full grids — no partial required |
| Jacuzzi | Earthworks EW 60 | 42-2970-07-R | 8 full grids — no partial required |
| Waterway Plastics | Crystal Water | 818-3930 | — |
| Astral | 18047 Clarity DE | — | — |
(This is not an exhaustive list.)
Pro Tip: Always turn off the pump and release all pressure from the filter tank via the air relief valve before opening the tank to replace grids. Confirm the correct grid count for your filter model — 7 full + 1 partial (Hayward, Pentair) or 8 full (Sta-Rite, Jandy, Jacuzzi) — before ordering. Inspect the manifold o-ring and collar alignment at every grid service to maintain system integrity and prevent bypass.
Also known as: FG1005
